Features:

• 7.5 GHz spectrum analyzer
• 100 kHz - 7.5 GHz vector network analyzer
• -165 dBm/Hz Displayed Average Noise Level (DANL)
• < 0.7 dB total amplitude accuracy
• Phase noise: < -98 dBc/Hz @ 1 GHz, 10 kHz offset
• Resolution bandwidth (RBW): 1 Hz to 3 MHz
• Pre-amplifier and tracking generator are standard
• 10.1 lnch Multi-Touch Screen, Mouse and Keyboard supported
• Web Browser Remote Control on PC and Mobile Terminals and File Operation
• Several options included with free trial period: Distance To Fault, EMI Filter and Quasi-Peak Detector, Advanced Measurement/Waterfall Chart

The SIGLENT SVA1000X series spectrum and vector network analyzers are powerful and flexible tools for RF signal and network analysis.

With a frequency range up to 7.5 GHz, the SVA1000X series delivers reliable automatic measurements and multiple modes of operation - the base model is both a spectrum analyzer and a vector network analyzer. Optional functions include distance-to-fault location, vector signal modulation analysis and much more.

Applications for the SVA1000X include broadcast monitoring and evaluation, site surveying, S-parameter measurement, cable and antenna testing, analog/digital modulation analysis, EMI pre-compliance testing, research and development, education, production, and maintenance.

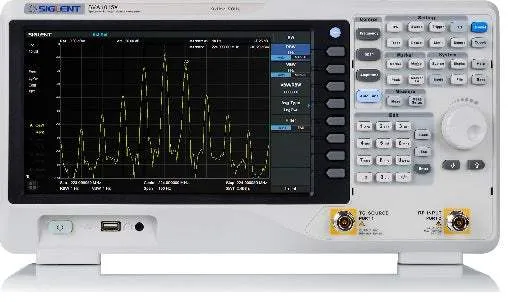

*The image is for reference only. See product specification for details.
