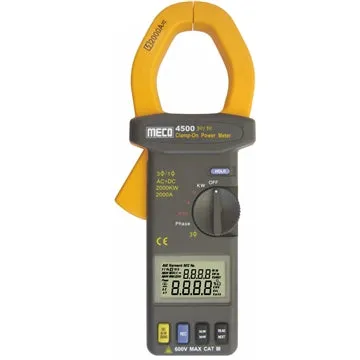

The Meco 4500 Clamp-On Power Meter is a high-performance instrument designed for accurate AC/DC power measurement in both single-phase and three-phase systems. With TRMS measurement, phase angle analysis, and auto-ranging capabilities, it is ideal for industrial, commercial, and utility power monitoring. Its dual display allows simultaneous measurement of power factor, voltage, current, frequency, and power parameters.
Key Features:
-
Phase Measurement Modes:
- 3-Phase 4-Wire (3f4W)
- 3-Phase 3-Wire (3f3W)
- 3-Phase Balanced, 1-Phase 2-Wire (1f2W)
- 1-Phase 3-Wire (1f3W)
-
Power Measurement:
- AC DC 2000kW (3-phase)
- 1200kW (1-phase)
-
Dual Display:
- kW Power Factor (PF)
- KVA KVAR
- Voltage Current
- Voltage Frequency
- Current Frequency
-
Phase Angle Measurement: Measures ±90° with phase sequence indication (R, S, T).
-
AC/DC Auto Detection: Automatically detects AC or DC input.
-
Current Measurement: Up to 2000A AC/DC.
-
Voltage Measurement: AC and DC up to 600V.
-
TRMS Measurement: Ensures accurate readings for non-linear loads.
-
Power Factor Analysis: Enables monitoring of power efficiency.
-
Memory Storage: Save up to 4 records for later review.
-
Auto Ranging: Automatically selects the best measurement range.
-
Overload Indication: Alerts when input exceeds measurement capacity.
General Specifications:
- Jaw Opening: 55mm for cables; supports bus bars up to 65mm x 24mm.
- Power Supply: 9V battery (included).
- Display: Dual 4-digit LCD display for simultaneous parameter viewing.
- Sampling Time: 0.5 sec for V and A, 1.6 sec for W.
- Power Consumption: 25mA (approx.).
- Auto Power Off: Conserves battery when idle.
- Low Battery Indication: Alerts when the battery needs replacement.
- Dimensions: 271 x 112 x 46 mm.
- Weight: 650g (with battery).
Accessories Included:
- Test Leads – 1 Pair
- Carrying Bag – 1 Pc
- 9V Battery (Pre-installed) – 1 Pc
- User Manual – 1 Pc
