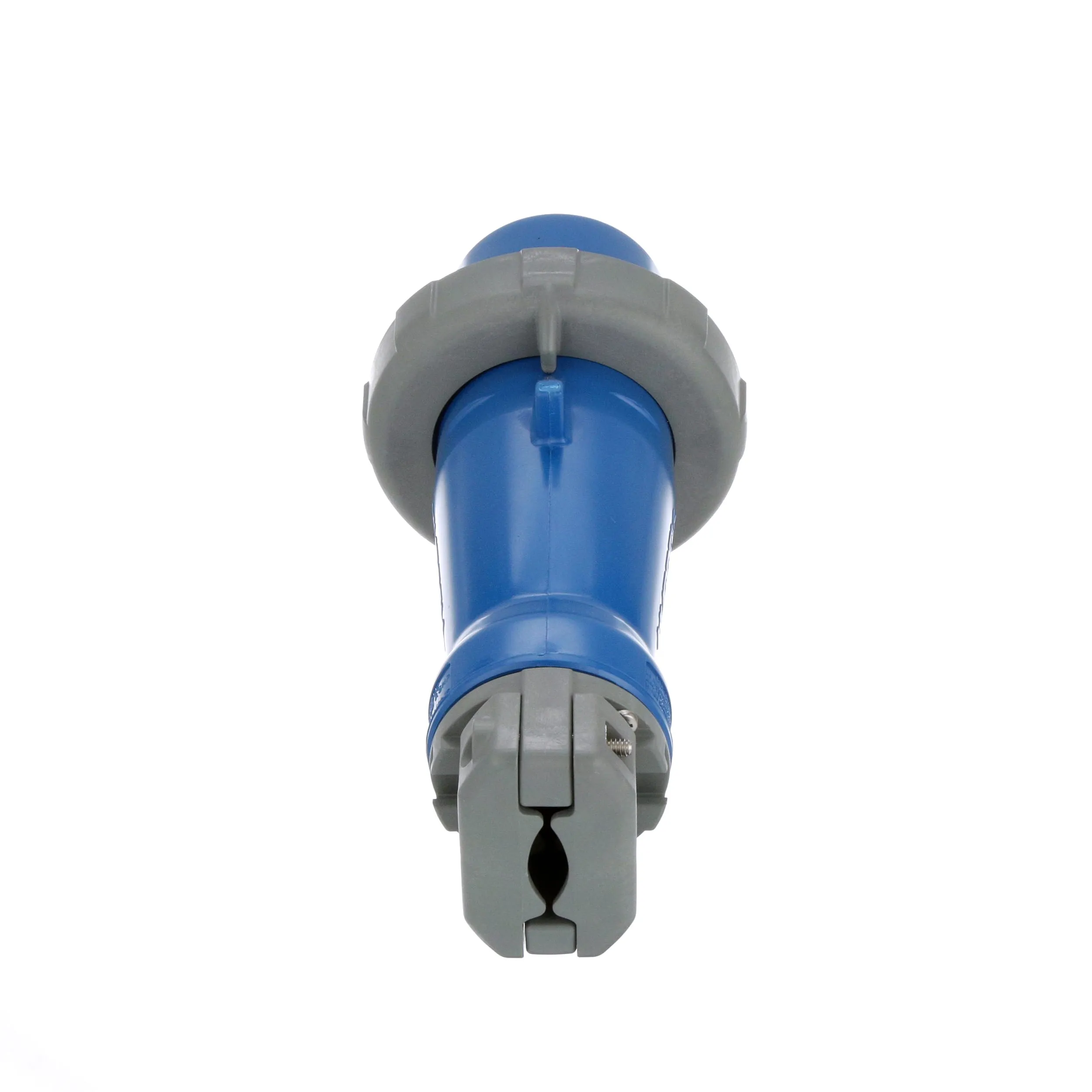

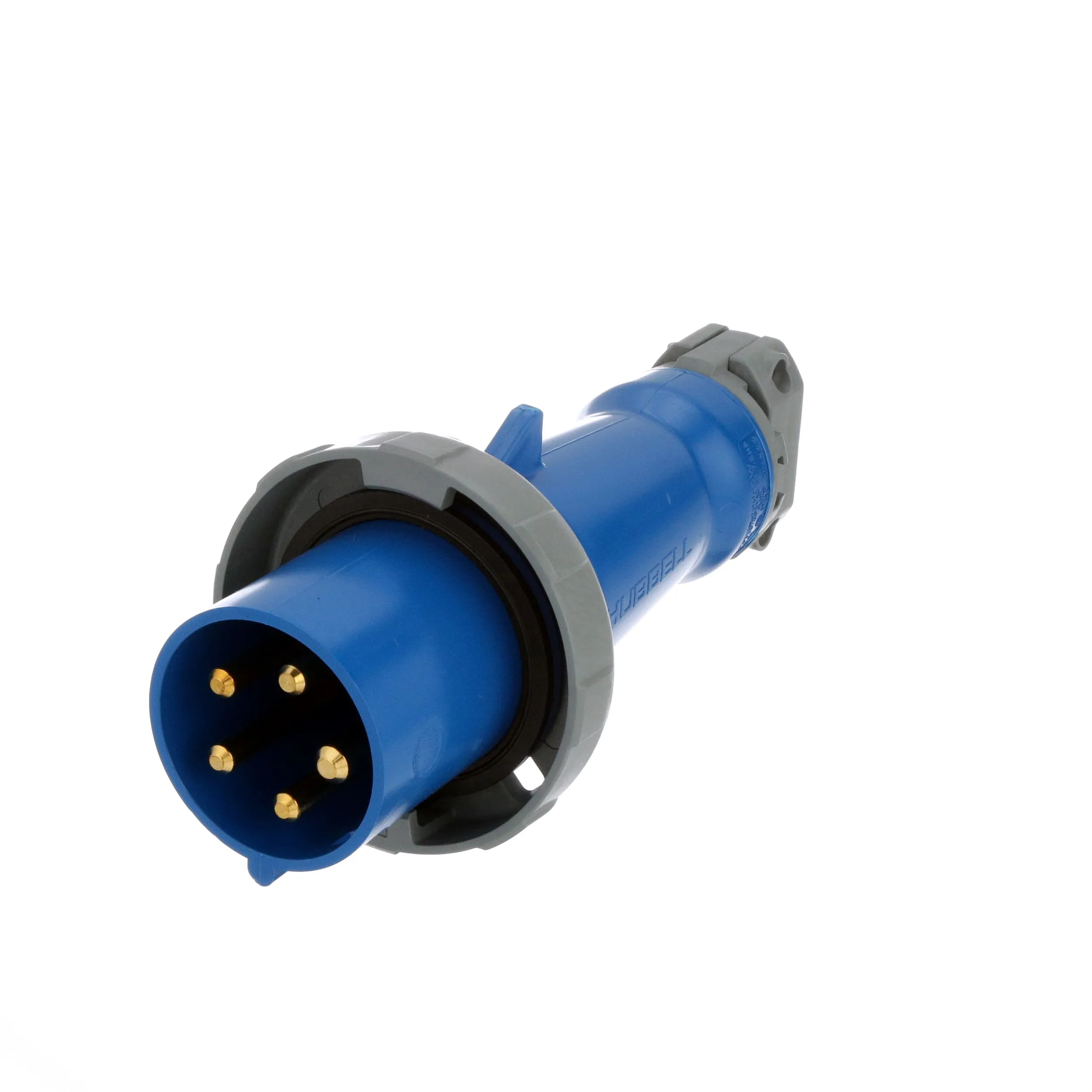

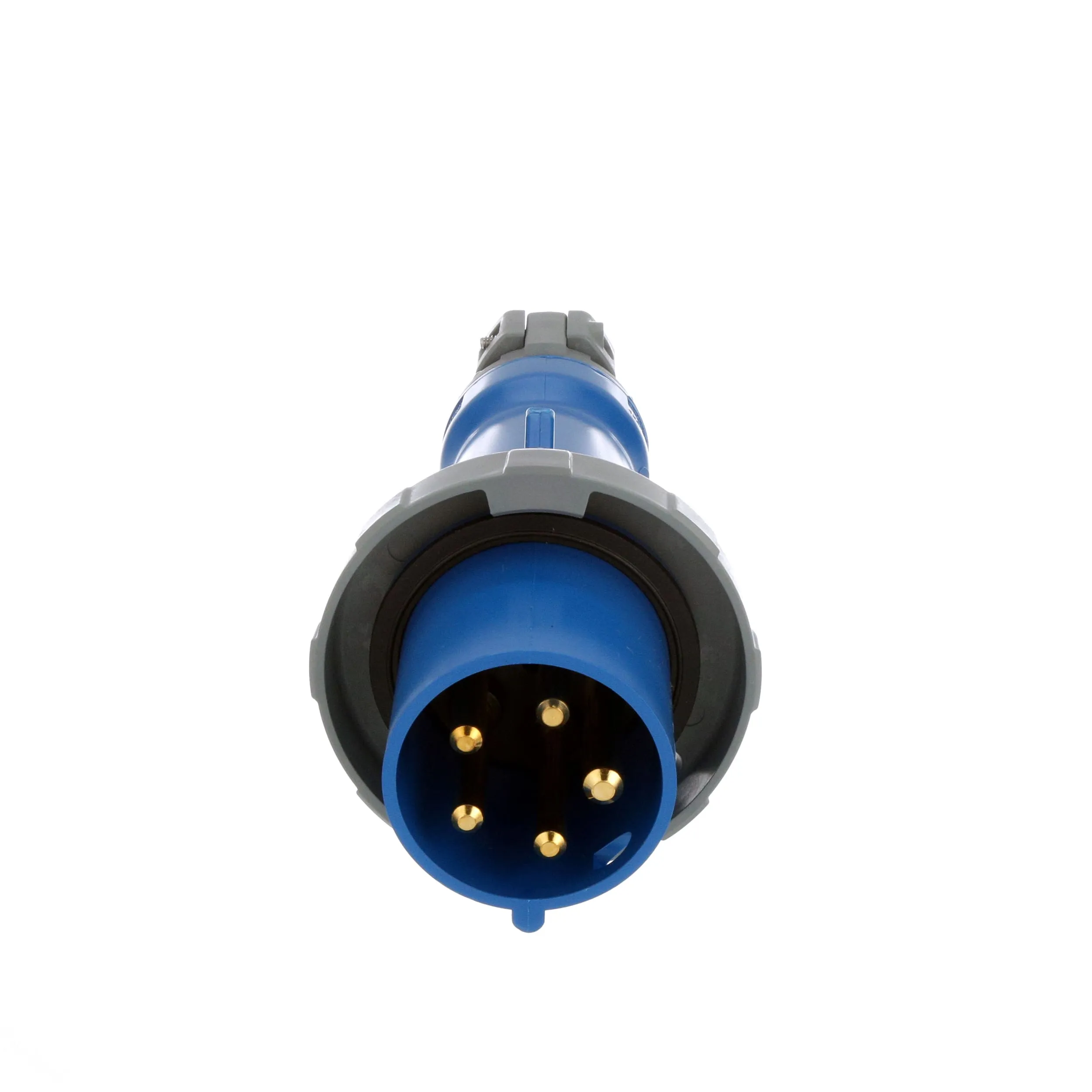

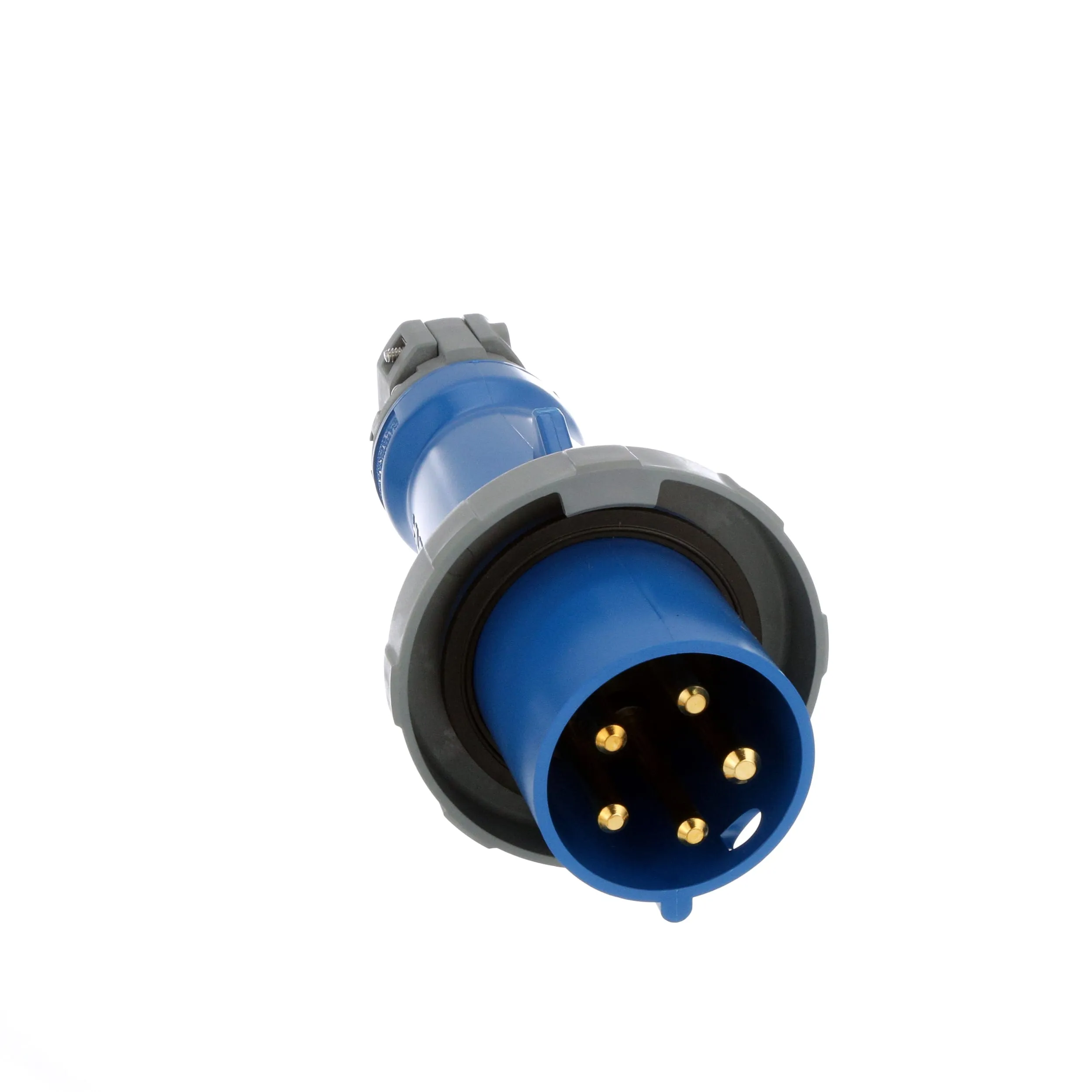

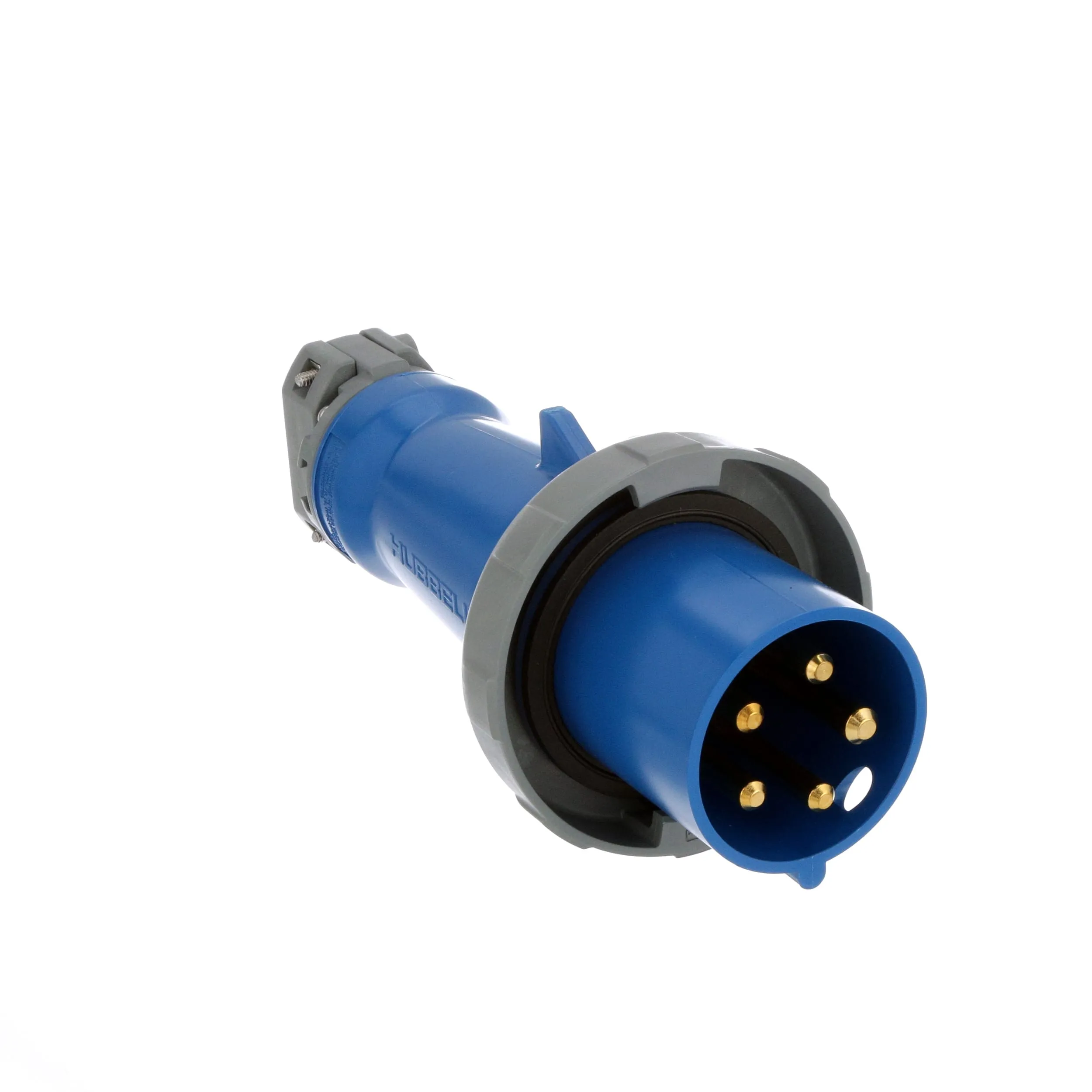

Name: Hubbell Wiring Device-Kellems HBL560P9W
SKU: 1151889

Product Details ＋

Product Attribute	Attribute Value
Agency Approvals	UL, CSA
Color	Blue
Contact Material	High-Impact Thermoset
Contact Type	Pin
Current Rating	60 A
Diameter, Cord	0.5 to 1.45
Housing Material	Zytel 801 Nylon
IP Rating	IP67
Number of Contacts	5
Number of Poles	4
Primary Type	Pin Sleeve
Product Header	Watertight IEC Pin and Sleeve Plug
Series
Special Features	Watertight
Termination	Screw
Type	Cable Plug
UPC Code	783585405704
Voltage Rating	120/208 V V
Wire Size	#8-#2

Overview

Hubbell HBL Heavy Duty ICS Series — Pin and Sleeve Devices/Mechanical Interlocks:

The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbell’s horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting/“line of sight” disconnecting means.

Similar to our Twist-Lock® devices, Hubbell’s Pin and Sleeve line of plugs, connectors, inlets, receptacles, mechanical interlocks and accessories are the highest performing products available. The HBL® series of IEC pin and sleeve and Insulgrip lines are assembled in the USA and have a full list of innovative features. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors.

Features:

One piece non-metallic housing provides impact and chemical resistance in an insulated body

Solid one-piece pins for reliable electrical contact

Gasketed sealing ring provides watertight seal when mated with receptacle or connector

Heavy duty external cord grips for maximum cord retention

Rugged one-piece housing, thick wall construction protects internal components, eliminates joints preventing infiltration of contaminants

Amperage/voltage rating and catalog number molded in housing for easy identification

Lockout/Tagout, tapered opening on plug shroud accommodates up to ³/8 inch (9.7mm) lock shackle diameter

Heavy duty external cord grips provide maximum cord retention to maintain secure terminations

Super tough plug shroud protects pins from deforming from physical abuse

Protects the user from the possibility of touching live contacts during insertion and withdrawal of mating parts

Solid one-piece pins, machined from solid brass for longer life and reliable electrical contact

Molded Thermoset Polyester Contact Carrier provides high resistance to electrical tracking

Withstands higher temperatures which may result from overload or arcing

Thermoset properties provide dimensional stability for this critical assembly

16/20 and 30/32 Amp devices feature patented swiveling pressure pad terminal screws and prevent damage to conductor strands. 60/63 and 100/125 Amp devices feature large hex-head stainless steel screws which provide higher torque levels for secure terminations
