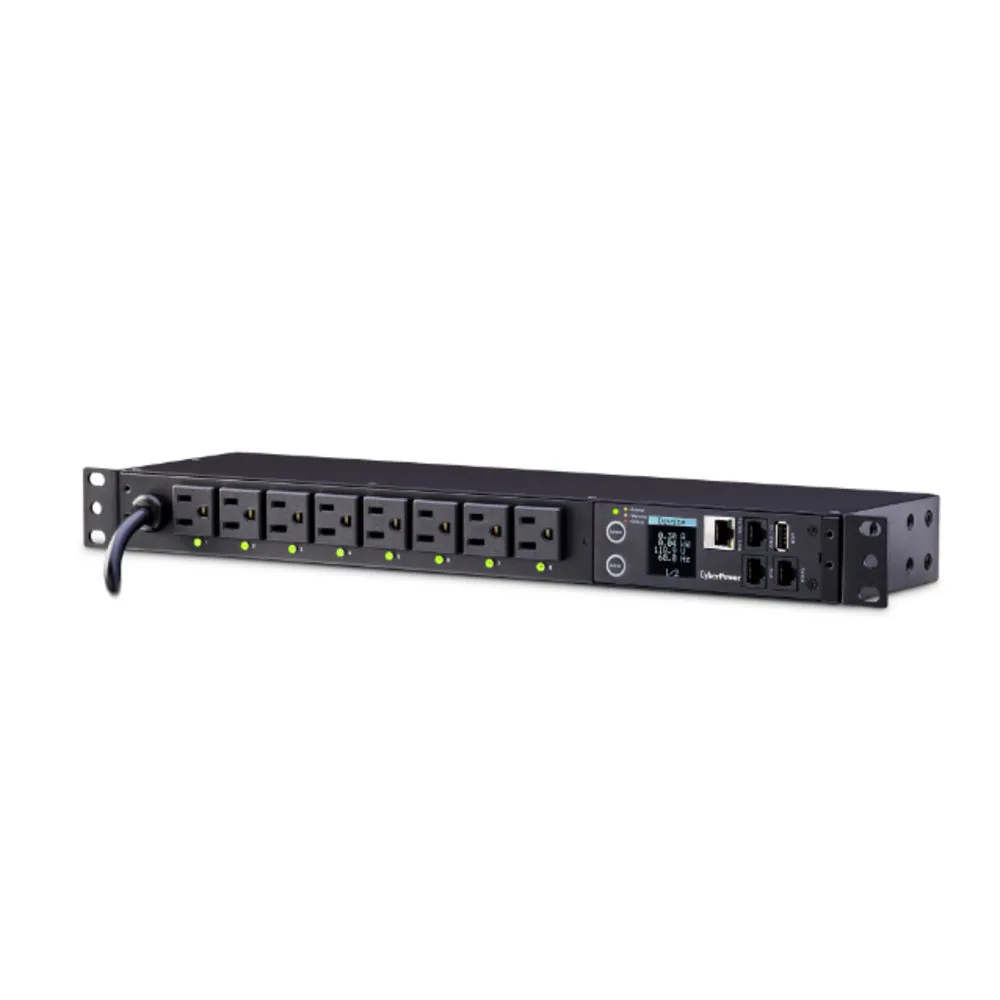

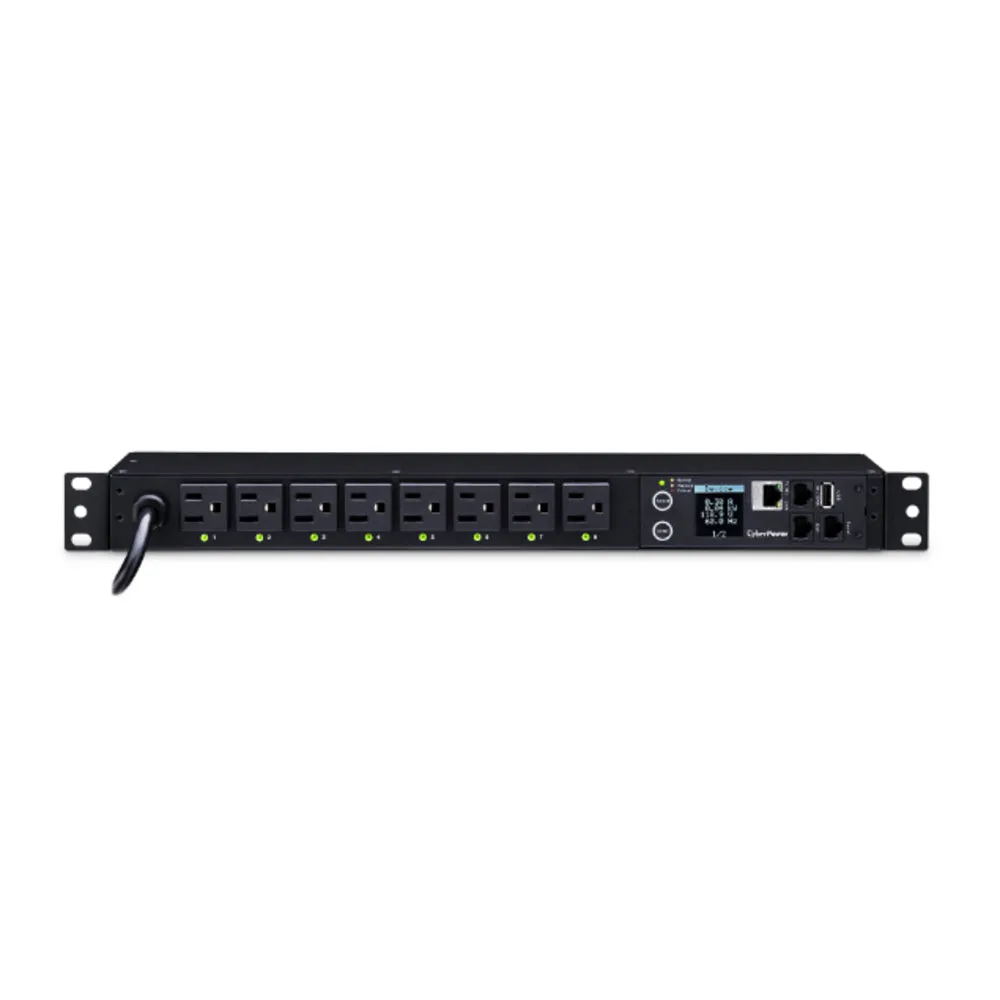

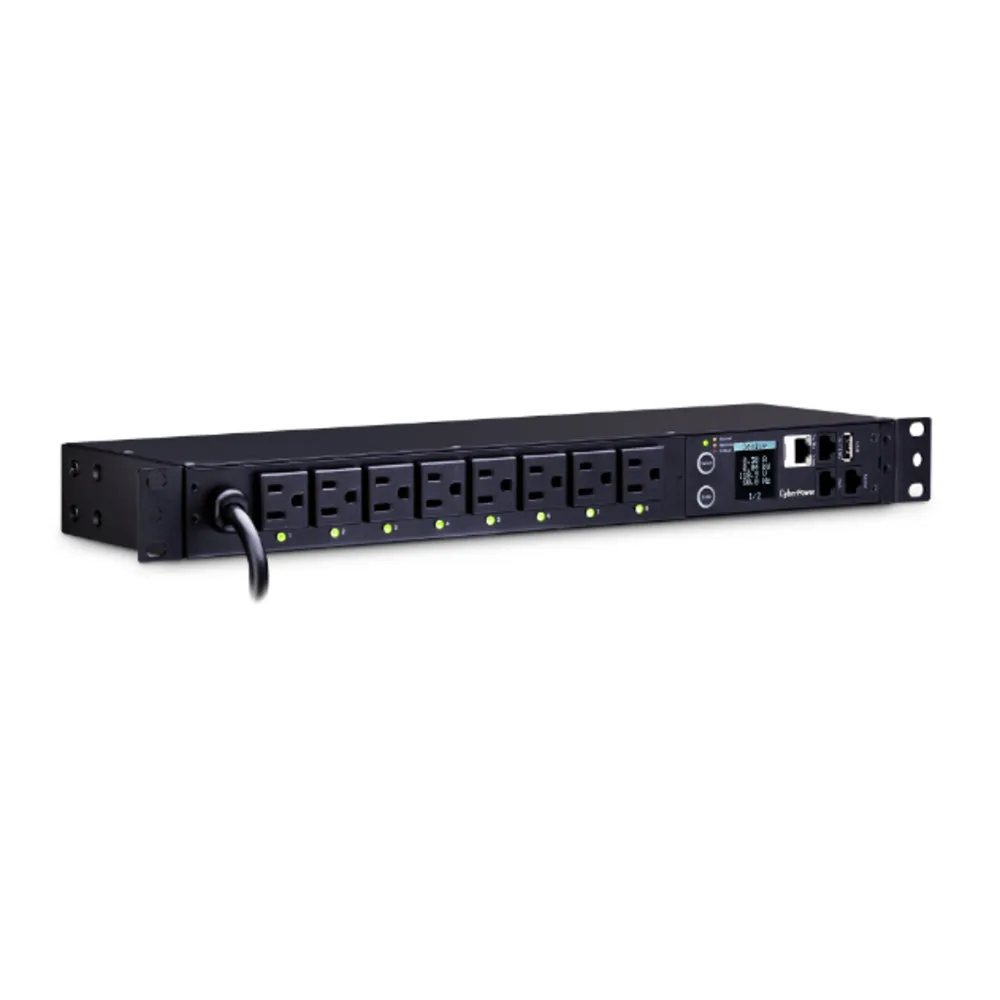

Cyberpower PDU81001 15A Metered-By-Outlet Switched PDU - 120V

The Cyberpower PDU81001 is a 1U rack mount power distribution unit (PDU) that provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, automated load shedding, controlled power-cycling, and more. This PDU is ideal for data centers and network closets.

Features

PDU types: Metered, Monitored, Switched
AC input frequency: 50 - 60
Maximum current: 15
Power plug: NEMA 5-15P
Cable length: 3.6
AC outlets quantity: 8
AC outlet types: NEMA 5-15R
Power protection features: Short circuit
Monitoring: Current
Ethernet LAN (RJ-45) ports: 4
Display: LCD
LED indicators: Y
Rack capacity: 1U
Product color: Black
Operating temperature (T-T): 0 - 55
Operating relative humidity (H-H): 0 - 95
Operating altitude: 0 - 3500
RoHS compliance: Y
Certification: UL 60950-1, FCC Class A
Dimensions (WxDxH): 433.07 x 112.01 x 44.45
Nominal input voltage: 100-120

Specifications

Switched Metered-by-Outlet, 15 x A, 100 - 120 V, 50 - 60 hz, 8 x NEMA 5-15R, 1U, 12 ft, 17.05' x 1.75' x 4.41', 5.3 lb

Additional Features

Per Outlet Power Metering: Provides information on the amount of power being drawn from each outlet, each circuit, and the PDU as a whole.
CyberPower Management Console: A hardware interface built into Monitored and Switched PDUs. Its functionality includes the ability to switch PDU outlets on and off, reboot connected equipment locally or remotely, schedule power cycling of attached equipment, and perform other tasks, such as load monitoring and event logging.
Remote and Local Monitoring: Enables offsite and onsite tracking of PDU vitals; provides outlet control for individual and networked clients.
Automatic Event Notifications: Provide immediate updates about power events via email, SMS text, or SNMP traps.
Upgradeable Firmware: Downloadable improvements (firmware updates) to programs that run the PDU.
Digital Display: Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.
Network-Grade Plugs and Outlets: Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
Long Input Power Cord: Reaches distant power sources, allowing the PDU to be placed where it's needed.
Cord Retention Tray: Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
1U Mounting Brackets: Space-efficient 1U design allows PDU to be installed horizontally or vertically, under a counter or via wall mount.
Durable Metal Housing: Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
Three-Year Limited Warranty: Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
