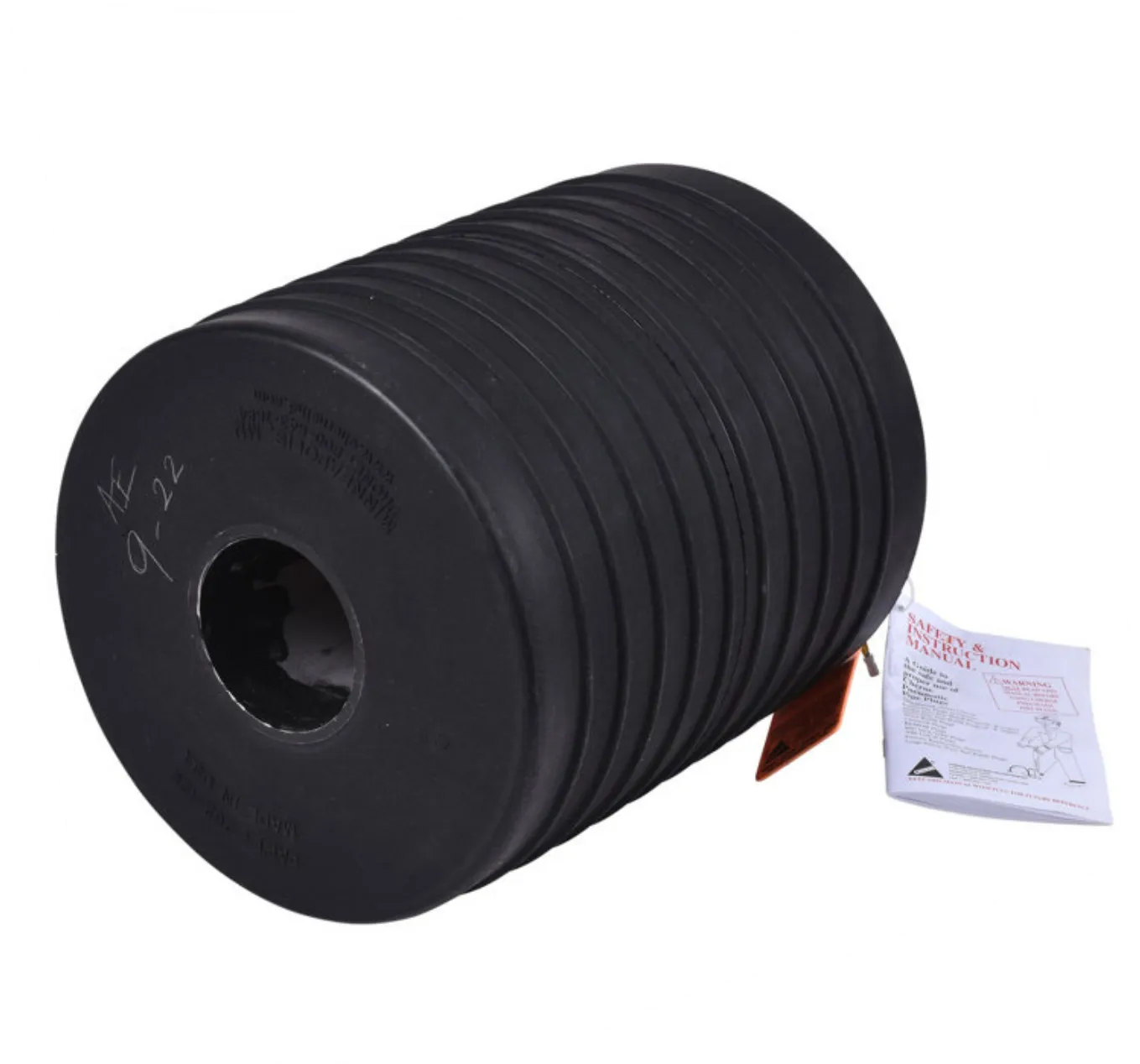

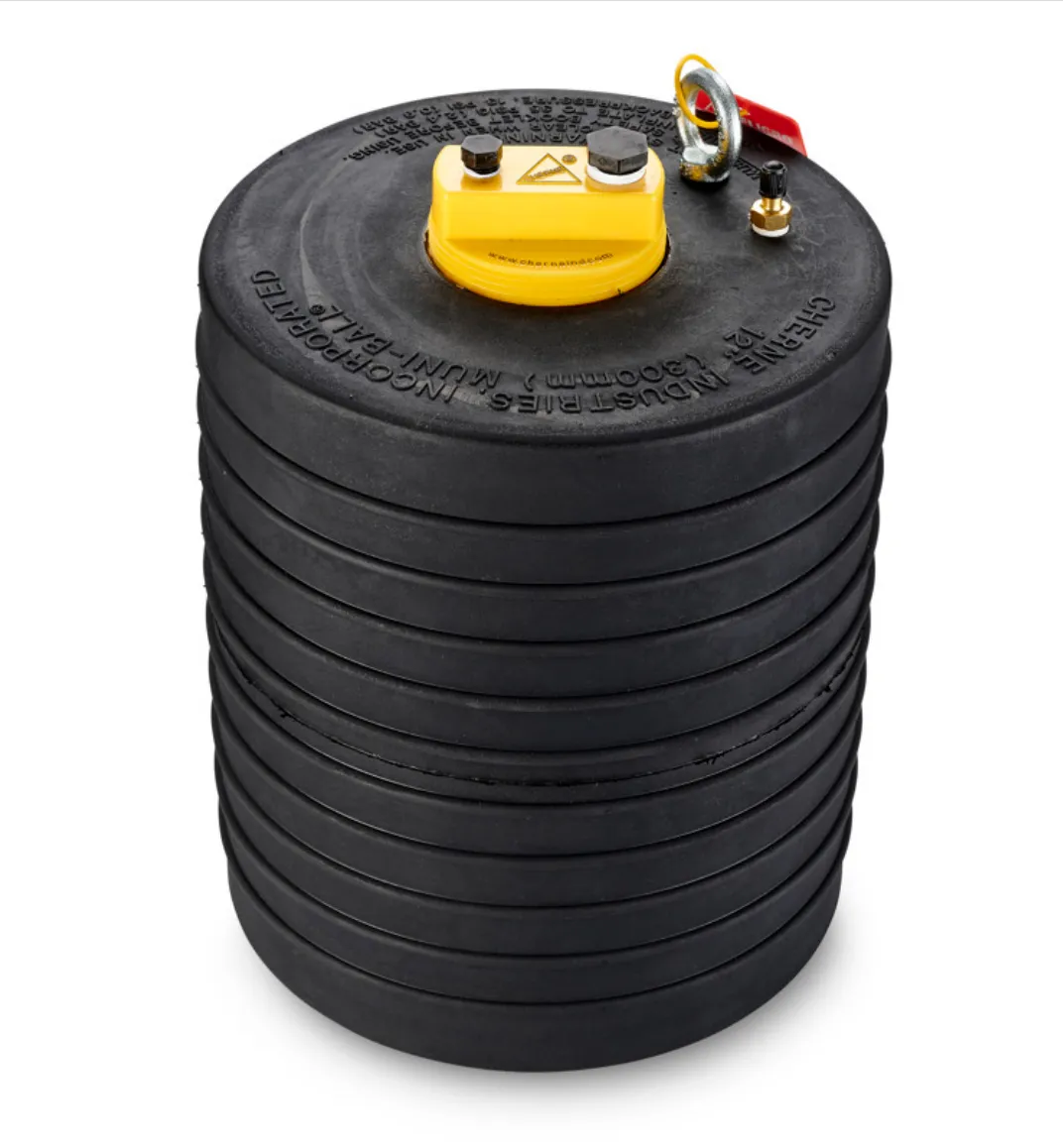

Cherne® 262129 12" Muni-Ball® Test Plug, 3" Bypass

Name: Cherne® 262129 12" Muni-Ball® Test Plug, 3" Bypass
SKU: 1004377

Cherne® Single-Size Plumbing Muni-Ball® Plugs offer a full bypass, allowing both testing and monitoring of piping systems. This makes them ideal for installation and repair of residential or commercial piping systems. Cherne Industries is a global leader in pipe plug, blocking and testing.

Product Specifications:

Nominal Size: 12 in. (300 mm)
Bypass Diameter: 3 in. F
Chain Eye Bolts: 3/8 in. (1)
Deflated Diameter: 10.25 in. (260 mm)
Deflated Length: 13.75 in. (350 mm)
Inflation Pressure: 35 psi (2,4 bar)
Inflation Thread: 1/4 in.
Maximum Back Pressure: 13 psi (0,9 bar)/30 ft. (9.1 M)
Nominal Max: 12
Nominal Min: 12
Usage Range: 10.50 in. - 12.25 in. (267 - 311 mm)
Weight: 13 lb.
