Product Details
  • Special Parts for Catrikes
  • 26 Mph / 15-30 Mile Range
  • Pedal-Assist and Throttle-on-Demand





Description

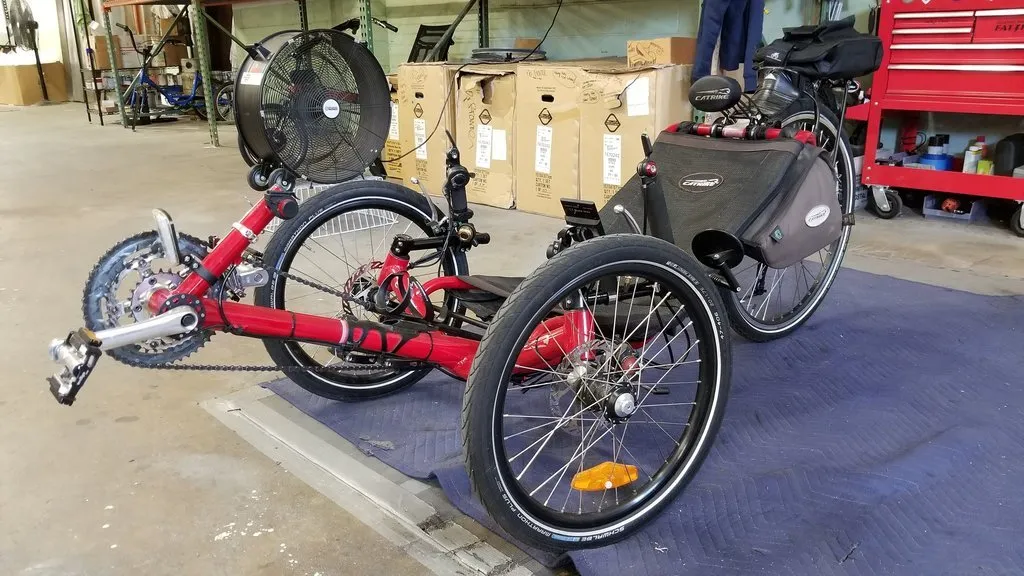

Convert your Catrike to Electric!
NOT COMPATIBLE WITH NEWER MODEL CATRIKES WITH THRU-AXLES!!

Extras Included:

  • PAS Extension Cable
  • MTB bar-end for mounting throttle offset from handlebars to clear bar-end shifter derailleur cable
  • Please note that the Universal Battery Mount is not offered as an add-on for this specialty conversion system. For this system, the configuration may vary, so if you need the Battery Mount, please visit the and add it to your cart separately.

*The newer Catrike models use external bearing bottom brackets that require special considerations and parts for fitting PAS sensors and magnets. Contact us with questions.

Newer models with external bearing cranksets, use: PAS 12 magnet split 64/74 BCD and right side PAS sensor. Cut the mounting legs off the sensor as shown here to make more clearance:
(Installs with No Special Tools)


Older models with square taper cranks uses a regular kit PAS (12-magnet split disc and left hand PAS sensor and installs with no special tools).

The mountain bike bar-end allows mounting the throttle near the bar-end shifter but keeps the derailleur cables from interfering with the throttle:

 The Topeak BarXtender allows you to mount the LCD for convenient viewing:

Locking Parking Brake Levers:


See details of the kit here:

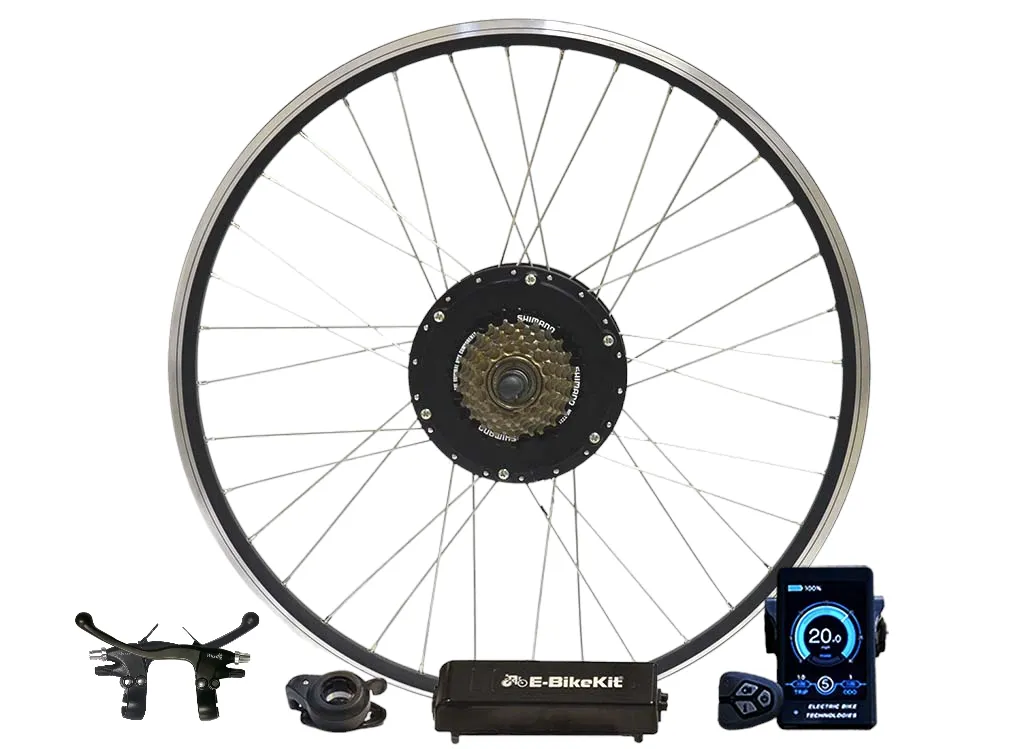

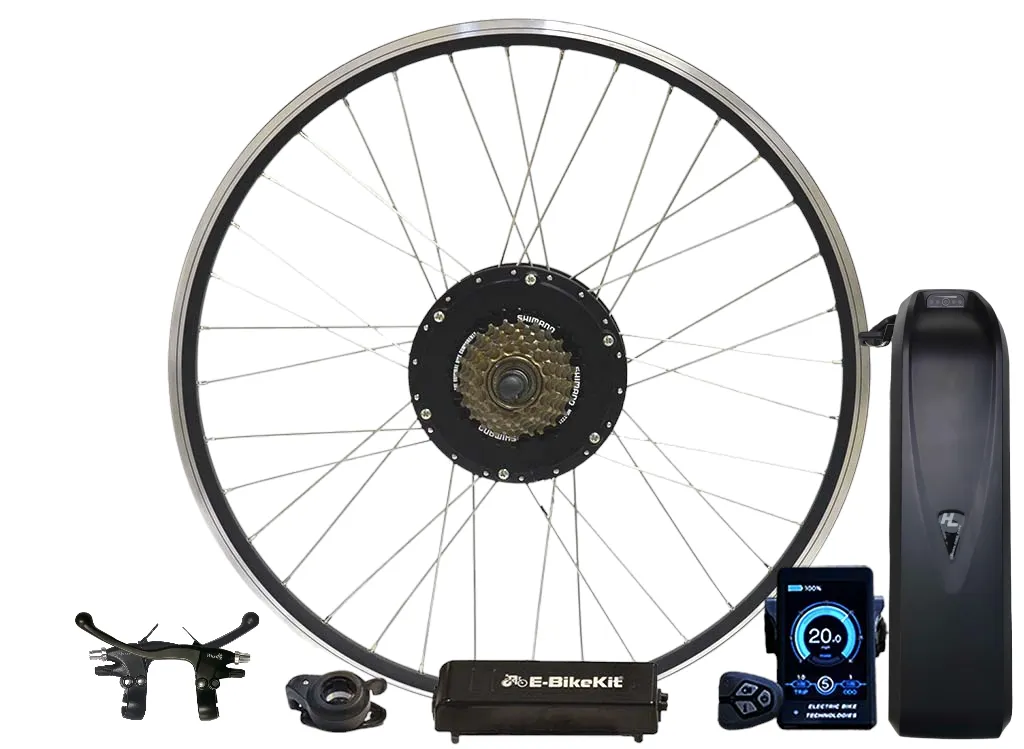

E-BikeKit rear 500w geared hub motor conversion kit with 48v Li-ion battery pack and charger.

The E-BikeKit 500-1000w geared conversion kit is powered by an internal 5:1 planetary gear hub motor with a clutch. The clutch in the geared motor offers zero drag when pedaling and not engaging battery power. This motor is more efficient, resulting in increased range (especially with "start/stop" riding), has more starting torque, and has greater hill-climbing ability than a direct-drive motor of equal power rating. The motor is also smaller in diameter for increased stealth and 3.4 lbs lighter than the 500w direct drive.

Who's it for? This premium electric bike conversion kit system is for those that want the best of the best in performance, efficiency, weight, stealth, and speed. The top speed is 26 mph! There are a 300 lbs total load limit so if you plan on more than that, look to a heavy-duty system.


Learn More:  |  |  |

Helpful Resources:  |

Note: Our kits include parts to fit a wide variety of bikes, but do not fit every bike without modification or extra parts. Our representatives are available to help with compatibility questions and make recommendations on additional parts that you may need.

Questions? Call us toll-free at  and an experienced professional can assist you. Monday – Friday 9 am - 5 pm EST. Outside of business hours get help fast via .

Shipping Note: Li-ion batteries are shipped separately from electric bike kits. Li-ion battery packs are shipped via FedEx Hazmat and are require a signature for delivery. You may receive your kit, battery, and possibly the battery rack (if applicable), on separate days.





Motor Specs:

Brand: Electric Bike Technologies, Inc.
Type: Internally Geared (Brushless, and disc brake compatible)
Power: 500w Nominal / > 1000 @ 48v
Max Torque: 84Nm @ 48v
Max RPM: 320 @ 48v
Cable: 8" Axle Exit, 3-Phase / 5 Hall Effect
Connector: Round 8-Pin 13/32" (10.4mm)
Weight: 9.4 lbs (4.26 kg)
Warranty: 1 Year (up to 48v - 300 lbs max load)

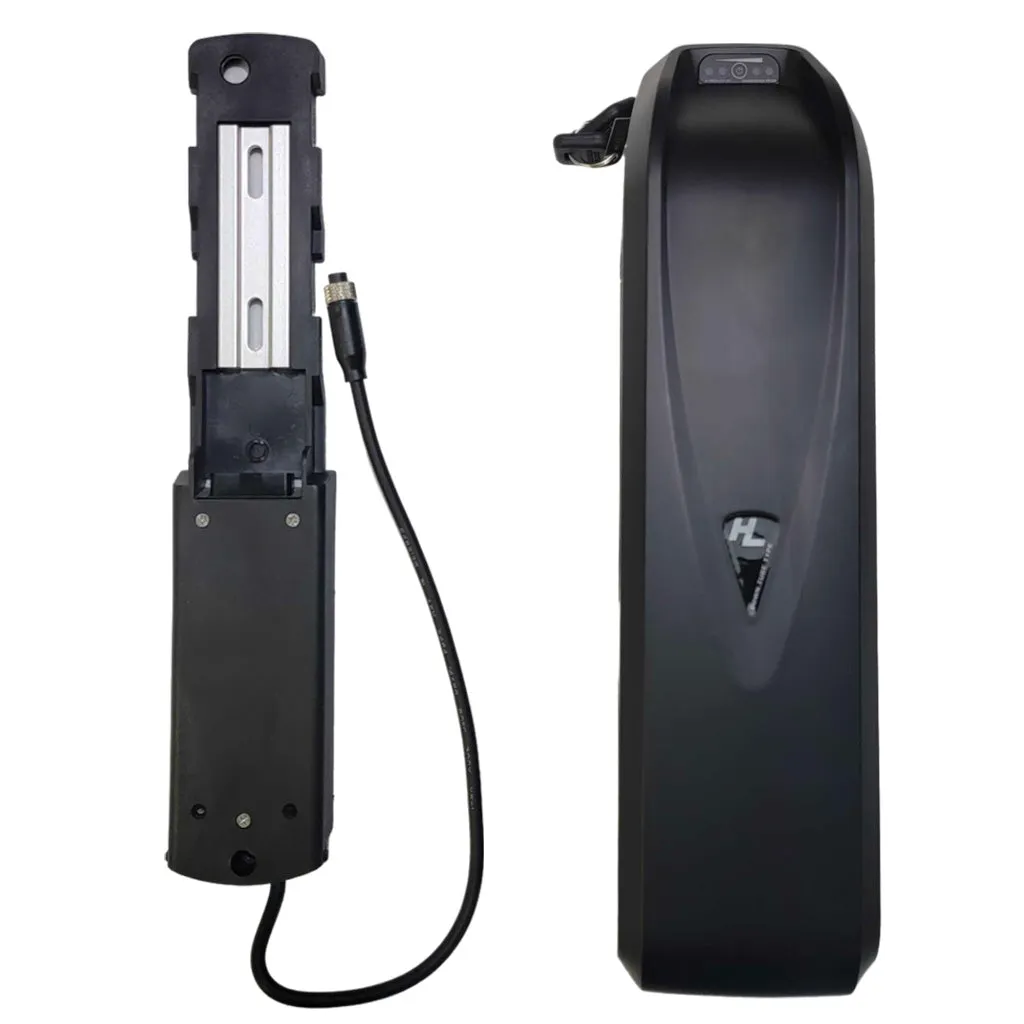

Battery Specs:

Range: 15-30 Miles (Based on riders weight, input and terrain contingent)
Charging Time: 15Ah Pack = 5 Hours / 3Amp Charger
Nominal Voltage: 48v
Nominal Capacity: 15Ah (0.2C)
Battery Energy: 720Wh approx.
Dimensions: 14in x 3.5in x 5in (356mm x 89mm x 127mm) approx.
Total Weight: 10.125 lbs (4.6 kg)
Cell Assembly: 18650-3.6v-13S4P
Life Cycles: 500-800 Cycles
Max. Continuous Discharge: 16A
BMS Protection Current: 20A
Discharge Cut-Off Voltage: 37.5v
Max Charge Voltage: 54.6v
Inner Resistance: < = 230mΩ
Operation Temperature Range: Charge: 0°C – 113°F / Discharge: -68°F – 140°F
Storage Temperature: 0°C – 104°F (Extended Storage: 59°F – 77°F)
Battery Case Material: Plastic
Limited Warranty: 1 Year
Manufacturer: Electric Bike Technologies, Inc.

Assembled Pack Certificates: UN38.3; MSDS; RoHS; SGS





Includes:

Every E-BikeKit conversion kit comes with all of the parts you'll need for your conversion.

• USA Hand-Built Wheel w/ Disc-Brake Compatible Hub Motor
• 48V Compatible 22Amp 12FET Controller
• Programmable LCD Dashboard
• Split Chainring Magnet for External Bearing Crankset
• PAS Sensor Right Side Mount
• 1 Thumb Throttle
• Left and Right E-Brake Levers w/ Parking Lock
• Motor Cable
• 4-to-1 Accessory Cable
• Battery Wire Harness (Only included if there's no battery kit)
• Freewheel
• Battery and Charger (Only if a battery is ordered)
• Zip Ties, C-Washers, and Torque Arms in Every Kit!

Extras for Catrike Kit:

• MTB Bar Ends for mounting throttle offset from handlebars (to clear bar ends shifter derailleur cable)

Catrike Conversion System - Dealer
  • 20
  • 26
  • 700c
  • 7Speed
  • 8Speed
  • 9Speed
  • 10speed

$ 83.29

$ 64.07

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable
